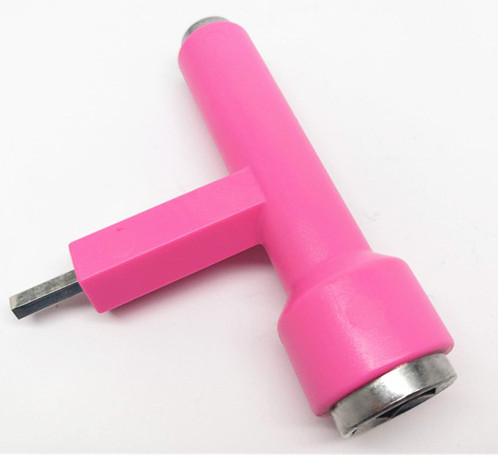

DME Plastic Insert Molding
Mold details description:
| A/B plate steel | P20 |
| Mold type | 2 plate-mould |
| Mold base steel | S50C LKM, DME, LKM & HASCO & DME, HASCO, LKM Mould Base |
| Mold standard | LKM |
| Core/Caviry steel | P20/718/738/NAK80/S136, NAK80, S136, P20, 718H |
| Runner type | Cold runner |
| Gate type | Sub gate |
| Cycle time | 50 S |
| Design software | UG, PROE, CAD, CAD/ProE/UG/SOLIDWORKS |
| MOQ | 1 set |
| Payment term | T/T |
| Package | Artificial Wooden Box with Steel Frame |
| Deliverly date | 4-5 Weeks |
| Mold life | 500,000 shots |
We count with an innovative and dynamic team, with more than 10
years of experience, with the capacity in manufacturing tools from
small, middle and large size, we set the difference by diversity.
KYE team is at your service offering professional expertise,
flexibility and accuracy in assumed deadlines.
This are the objective to arrive together with success to the
target.Welcome your visit!
KYE Mould Team is able to offer the full range of service from mold
designing, making, plastic part molding to printing, assembly,
package, and shipping arrangement.
1. Engineering/ Technical
Mold design
Mold flow analysis
Project management
Supplier Managed Inventory
Design for Manufacturing
2. Mold Building
Mold up range from samll, middle and large
Complex Surfaces
Assembly Fixtures
Hot-Runner Capability
3. Technical Injection Molding
Structural Foam
Small Precision and Large Cosmetic
High Pressure Thin wall
Robotic and Automated Pick and Place
4. Plasting/die-casting molding
Our Advantage:
1. Owned mold making workshop
KYE has owned mold workshop with 15 CNC machine,10 EDM, 4 wire
cutting,milling machines, drilling machines, 2CMM and 3CMM in house
to make sure the high quality and lead time.
2. Professional Engineer team
KYE has 6-8 engineers with 10 year of full expereience, their
professional skill can offer you the best solution for the project
and help you manage the project in the best effective way.
3. Various Service
We offer various service including Automotive parts, Home
Appliance, Electronic and Medical parts with one stop service
including product design, mould fabrication and second
processing,such as Spray painting,Printing, Chrome, Engrave and
assembling,etc.
4. Injection molding workshop
KYE has around 40-50 sets of injection machine range from 50T to
600T.
5. Thorough project management system
KYE has thorough project management system from sales team to
engineer and worker team.
| Equipment | Model | Qty | Made in |
| CNC Center | YCM FV85A | 2 | Taiwan |
| Harford CNC-2150H | 2 | China |
| OKUMA | 1 | Japan |
| EDM Machine | ARD M30E | 7 | Taiwan |
| Sodick am30l | 3 | Japan |
| AM30L | 1 | China |
| Wire EDM | Charmilles 240 | 2 | Switzerland |
| GA64S | 1 | Taiwan |
| Grinder | JL-614 | 3 | Taiwan |
| WP-614 | 5 | Taiwan |
| Miller | Topone 3-5# | 5 | Taiwan |
| Die Spotting machine | NICE NC70-1007 | 1 | China |
| Die Rolling Machine | NICE NCF-5 | 1 | China |
| CMM | Mitutoyo C707 | 1 | Japan |
| Linear Height | TESA Micro-Hite M600 | 1 | Switzerland |
| Tool Microscope | Mitutoyo MF-A1720 | 5 | Japan |
| Projector | CPJ-3015Z | 1 | Taiwan |
| Gear Tester | OSAKA GTR-4LS | 1 | Japan |
FAQ
Q: What’s the advantages of your company?
A: we have 15-20 years experience mold design team, skillfull
worker and sales team and all inhose mold making.
Q. What's your delivery time for molds and plastic injection
products?
A. Our delivery time for mold: 3-5 weeks as mold structure
complexity.
Plastic injection products: 3-18 days.
Q. What's your mold tolerance?
A. 0.005-0.02mm according to different product requirements.
Q. What I should offer to you if I need a quote?
A. 2D product drawing & 3D File, or send us real plastic sample.
